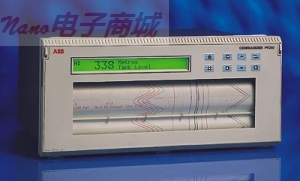

ABB Commander SR250B03SB-1 長條圖表記錄儀

ABB Commander SR250B03SB-1 長條圖表記錄儀

編程后記錄儀可在圖表上自動打印的時間，日期，信道標識，圖表速度，每個通道的尺度，報警信息，批次名稱

快速搜索任何圖表，過程事件或報警發生的線索和復查功能

觸摸按鈕，使用“易視”功能查看最新記錄

記錄儀在圖表上生成連續不斷的線，速度可達500毫米/小時

通用過程輸入接受熱電偶，RTD，毫安，毫伏，和V

灰塵和水阻力等級IP-66

高品質的圖形顯示顯示進程狀態一目了然

密碼保護防止未經授權或意外改變記錄儀配置

可選MODBUS ?串行通信提供完整的集成與控制系統

Commander MR250記錄儀 在250毫米寬的圖表上記錄3至12的過程信號。記錄儀是專為配電盤裝配和可配置輸入類型和圖速度。

Commander PR250記錄儀在250毫米寬圖表從3到24的過程信號。PR250提供了許多先進的處理功能，如流量累計，數學塊，邏輯方程，可配置顯示器，以及完整的信息打印。記錄儀可裝配面板用作工業領域應用便攜式記錄儀。

Recorder can be programmed to automatically print the time, date, channel identity, chart speeds, scales for each channel, alarm messages, and batch name directly on the chart

Rapidly search any part of the roll chart for a process event or alarm occurrence with the cue and review feature

See the most recent recordings at the touch of a button using the “Easy-view” feature

Recorders produce continuous lines on the charts at speeds of up to 500 mm/hour

Universal process inputs accept thermocouples, RTDs, mA, mV, and V

Dust- and water-resistance rating of IP-66

High quality graphic display—shows process status at a glance

Password protection prevents unauthorized or accidental changes to recorder configurations

Optional MODBUS? serial communications provide full integration with your control system

The Commander MR250 records from 3 to 12 process signals on a 250-mm wide chart. Recorder is designed for panel mounting and can be configured for a wide range of input types and chart speeds.

The Commander PR250 records from 3 to 24 process signals on a 250-mm wide chart. The PR250 provides many advanced processing capabilities such as flow totalization, math blocks, logic equations, configurable displays, and full message printing. Recorder can be panel mounted or used as a portable recording device for field or industrial applications.
