美國帝強GAC2100BLUE高精度快速谷物水分測定儀

GAC2100BLUE是一種極方便而且可靠的高精度谷物水分快速測定儀。它可以像便捷式谷物分析儀一樣，在15秒鐘內測試出谷物樣品的水分，樣品溫度和容重。但它的精確度遠遠高于便攜式谷物分析儀。GAC2100 BLUE測試的水分結果與烘箱法測定結果的誤差不超過±0.2%，并且GAC2100BLUE還可以測試顆粒飼料。

技術參數,功能特點

測試原理：電容、傳感器和稱重設置 校準容量：內存可容納64套校準

適用范圍：谷物、油料種子、草籽、蔬菜種子、豆類、顆粒狀飼料

語言： 共8種，供用戶自行選擇

顯示參數：水分、溫度和容重

信息輸出：2個標準的RS232

打印機端口

水分范圍：5-45% （取決于谷物的校準）

溫度差異：室溫與谷物樣品之間的溫度差異

安裝要求

不應大于20℃ 操作溫度：5℃-45℃

溫度補償：自動化 水分要求： 5-95%非凝結

重復率： ±0.1% 電源供給：85-264V/48-62Hz/20VA（取決于谷物與校準）

規格：

分辨率： 0.1%的水分 重量：11.8千克（26磅）

樣品形狀要求：顆粒狀 裝船重量：16.0千克（35.5磅）

樣品量： 250克左右

主要特點：

全自動的測定儀

⊙ 自動進樣

⊙ 自動稱重 最準確地帝強谷物快速水分儀

⊙ 自動補償樣品溫度

⊙ 可與烘箱法測試結果相媲美

⊙ 自動補償表面水

⊙ 操作人員不能操縱測試結果

⊙ 可由計算機遠程操作

⊙ 校準參數由強大的專業軟件運算而得

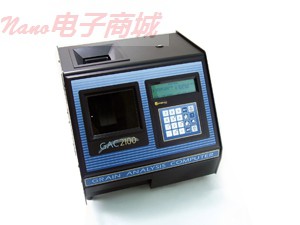

The GAC2100B, blue in color, is the NTEP approved model for use in all commercial, Legal for Trade, applications within the U.S. This model has all of the features of the required of NTEP moisture testers, such as built-in hopper sensors which sense when enough grain is present for testing. Simply fill the hopper, press the load button and the test is performed automatically. Moisture percentage, test weight or density, and temperature are displayed on a large LCD backlit display. It has a built-in memory for 64 standard grain calibrations and can display in 8 different languages. This tester can also be set-up to integrate with your automatic grain sampling system for smooth flow-through operation. The GAC2100B has new feature. The feature is that the drawer has to be inserted into the machine before the doors will open and the sample will drop into the test cell. The drawer that comes with the machine has a magnet attached to it that closes a switch, which enables the strike off motor to operate. For those that want the sample to flow through the unit upon completing a measurement, the bottom of the drawer may be removed while allowing the drawer (with magnet) to be inserted back into the unit. This provides a drawer without a bottom that acts somewhat like a funnel. This in turn allows the grain to flow through the GAC2100B into a larger container of choice. This feature was added to keep the operator from spilling grain on their counter without having the drawer inserted. The GAC2100BSA model is only available for our international customers, where the NTEP requirements do not apply. This model does not have the extended sample hopper for detection of sample volume. This version has all the same features that the Model GAC2100B has, but can not be used within the U.S. for commercial grain testing.

Actual dimensions 16"L x 15.25"W x 14.75"H. Ship dims 23"L x 22"W x 19"H. Net weight 26 lbs., Ship weight 36 lbs.
