Cole-Parmer USB-5203 多傳感器溫度記錄儀/板載內存卡

Cole-Parmer USB-5203 多傳感器溫度記錄儀/板載內存卡

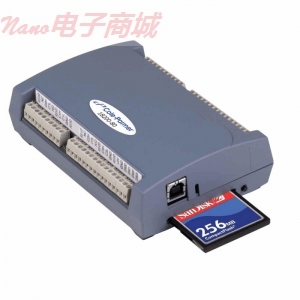

Cole-Parmer multi-sensor temperature logger w/onboard memory card

實驗室或?qū)嵉卦囼炛羞M行遠程數據記錄

這些基于USB的數據采集設備適用于遠程收集數據。單位配備四個雙24位Σ-Δ式A / D轉換器，8個DIO通道;內部存儲器報警功能;螺絲端子連接，并兼容USB 1.1和2.0。監控多達8個溫度和標準的CF卡（含512 MB ??存儲卡）直接存儲數據。

重新連接裝置到您的計算機下載結果，或取出CF卡和下載任何CF卡讀卡器的數據。綠色的LED驗證機連接到AC適配器電源，記憶卡已滿時，快速閃爍。熱電偶18200-75記錄數據和型號18200-80支持熱電偶，熱電阻，熱敏電阻，和半導體溫度裝置。界面直觀的軟件套件（見第26頁），允許您快速配置的輸入樣本，傳感器類型，采樣率，記錄器啟動/停止模式，報警級別設置報警條件的能力改變?nèi)魏螖?shù)字輸出輸入提供。包括軟件DASYLab ? PRO 的TracerDAQ ，和LabVIEW ?完全支持，包括：USB電纜，3英尺，512 MB ??CompactFlash卡軟件套件，2.5瓦USB電源適配器，美標插頭。

Conduct remote datalogging in the lab or in the field

These USB-based datalogging devices are ideal for collecting data in remote locations. Units feature four dual 24-bit, Sigma-Delta type A/D converters; eight DIO channels; internal memory for alarm functions; screw terminal connections; and are USB 1.1 and 2.0 compatible. Monitor up to eight temperatures and store data directly to standard CompactFlash cards (512 MB card included). Reconnect the unit to your computer to download results, or remove the CompactFlash card and download the data from any CompactFlash card reader. The green LED verifies unit is connected to the AC adapter power supply, and blinks rapidly when the memory card becomes full. Model 18200-75 logs data from thermocouples only and model 18200-80 supports thermocouples, RTDs, thermistors, and semiconductor temperature devices.

The user-friendly, intuitive software suite (included, see page 26) allows you to quickly configure the inputs to sample, sensor types, sample rates, logger start/stop modes, and alarm levels on each of the inputs providing the ability to set alarm conditions to change any of the digital outputs. Included software is fully supported by TracerDAQ? PRO, DASYLab?, and LabVIEW?.

What's included: software suite, 512-MB CompactFlash card, 3 ft USB cable, and 2.5 watt USB power adapter with standard US plug.

?
