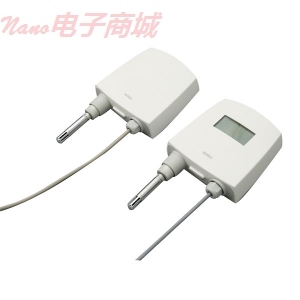

Vaisala HMT120-KB1A1B22A1A0Z 溫濕度計

Vaisala HMT120-KB1A1B22A1A0Z 溫濕度計

特點與露點的選項相對濕度和溫度輸出

探針可以容易地去除和更換，而不必調整發射器

兩線制，回路供電輸出配置

固定的遠程探頭型號

可選的液晶顯示器

維薩拉HUMICAP?傳感器

不同的輸出量程

兼容HM70和HMI41手持式單點校準

IP65（NEMA 4）保障性

維薩拉HMT120系列變送器專為監控苛刻的環境濕度和溫度。典型的應用包括穩定室，暖通空調，家畜，室內游泳池和室外應用。變送器可以安裝在墻壁上，并配備了一個積分或遠程探頭，帶或不帶顯示器。表面光滑的外殼使得它易于清潔和凈化。遠程探頭采用鍍鉻鋁是理想的高溫應用的有限空間。

產品規格
RH范圍內	0至100％
產品類型	相對濕度/溫度變送器
符合CE認證	是
濕度測量精度	在0?40℃±1.7％RH（0?90％RH），±2.5％RH（90?100％RH）/ -40?0℃，40℃?80℃±3.0％RH（0?90％RH）， ±4.0％RH（相對濕度90?100％）
使用溫度范圍	-40到80C
產量	2線4至20 mA /外部回路電壓10至30 VDC（RL = 0歐姆）20至30 VDC（RL <500歐姆）
溫度精度	在15?25℃±0.2C，在0?15C和在25至40℃±0.25C，在-40至0℃，并在40至80℃±0.4C
顯示	是
濕度傳感器	維薩拉HUMICAP 180R
施工	PC / ABS塑料外殼
功率	10至35 VDC
傳感器	3米遠程探頭
品牌	維薩拉
出廠編號	HMT120 KB1A1B22A1A0Z
型號	HMT120 KB1A1B22A1A0Z
商標	HMT120

Features relative humidity with the option of dew point, and temperature outputs

Probe can be easily removed and replaced without having to adjust the transmitter

Two-wire, loop-powered output configurations

Fixed and remote probe models

Optional LCD display

Vaisala HUMICAP? sensor

Different output scalings

Compatible with handheld HM70 and HMI41 for one-point calibration

IP65 (NEMA 4) protective housing

Vaisala HMT120 series transmitters are designed for monitoring humidity and temperature in demanding environments. Typical applications include stability rooms, HVAC, livestock, indoor swimming pools, and outdoor applications. The transmitters can be wall mounted and come with either an integral or remote probe, and with or without a display. The smooth surface of the enclosure makes it easy to clean and tolerates purifying agents. Remote probe is made of chrome coated aluminum and is ideal for high-temperature applications or where space is limited.

Note: Other options may be available—call for more information.

Specifications
RH range	0 to 100%
Product Type	Relative Humidity/Temperature Transmitters
CE Compliance	Yes
RH accuracy	at 0 to 40C ±1.7 %RH (0 to 90 %RH), ±2.5 %RH (90 to 100 %RH) / at -40 to 0C and +40 to 80C ±3.0 %RH (0 to 90 %RH), ±4.0 %RH (90 to 100 %RH)
Temp range	-40 to 80C
Output	2 wire 4 to 20 mA / External loop voltage 10 to 30 VDC (RL= 0 ohms) 20 to 30 VDC (RL< 500 ohms)
Temp accuracy	at 15 to 25C ±0.2C, at 0 to 15C and at 25 to 40C ±0.25C, at -40 to 0C and at 40 to 80C ±0.4C
Display	Yes
RH sensor	Vaisala HUMICAP 180R
Construction	ABS/PC plastic housing
Power	10 to 35 VDC
Sensor	3 meter remote probe
Brand	Vaisala
Manufacturer number	HMT120-KB1A1B22A1A0Z
Model	HMT120-KB1A1B22A1A0Z
Make	HMT120
