Masterflex 07015-21 標準泵頭Masterflex L / S 15管，PC外殼/ SS轉子

Masterflex 標準泵頭Masterflex L / S 15管，PC外殼/ SS轉子

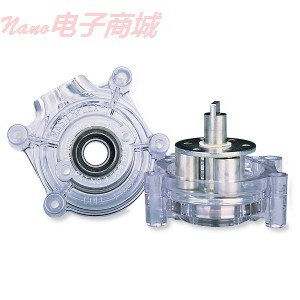

Masterflex Standard pump head for L/S 15 tubing, PC housing/SS rotor.

非常適合需要很高的精度和可重復性的流體傳輸應用

精密模壓成型的標準泵頭，可適應單一尺寸油管使用常見的流體傳輸?shù)膽贸绦蛐枰木群统錾目芍貜托浴?/span>

透明聚碳酸酯（PC）的外殼，無論是冷軋鋼（CRS）或不銹鋼（SS）的轉子; CRS經濟，而SS提供了更好的耐化學性和耐久性

-52機型黑色不透明的聚苯硫醚（PPS）外殼和SS轉子提供最佳的耐化學性。

泵頭結構緊湊，簡單的設計，同一側管進入/退出完美適用于具有空間限制的應用。

標準頭結構緊湊，易于集成到您的OEM應用。更多信息請致電我們?nèi)娴腛EM服務。

其經典之作，外觀設計專利，這種經濟泵頭精確和可重復的流體輸送應用的理想選擇。選擇標準泵頭精密管普通流體傳輸應用程序或標準泵頭高性能精密管材產生更好的壓力，吸程，泵粘性流體的能力。

包括：油管裝載鑰匙，單通道安裝硬件，15“（38厘米）長的硅膠泵管。

最新信息：

標準泵頭的設計實現最精確的點膠精度任何MASTERFLEX  ?   泵頭。只能使用MASTERFLEX  ?   Masterflex泵管，以確保其他管材的最佳使用性能。可能會導致保修失效。

Ideal for fluid transfer applications requiring high accuracy and repeatability

Standard heads are precision molded to accommodate a single size of tubing—use for common fluid transfer applications requiring accuracy and excellent repeatability.

Available with clear polycarbonate (PC) housing with either cold-rolled steel (CRS) or stainless steel (SS) rotors; CRS offers economy, while SS offers better chemical resistance and durability

The –52 models with opaque black polyphenylene sulfide (PPS) housing and SS rotors offer the best overall chemical resistance.

Pump head is compact and simple in design with same side tubing entry/exit—perfect for space-limited applications.

Standard heads are compact and easy to integrate into your OEM applications. Call for more information on our comprehensive OEM services.

This economical pump head with its classic, patented design is ideal for accurate and repeatable fluid transfer applications. Choose Standard pump head for precision tubing for common fluid transfer applications or Standard pump head for high-performance precision tubing for better pressure generation, suction lift, and the ability to pump viscous fluids.What's included: tubing loading key, single-channel mounting hardware, and a 15" (38-cm) length of silicone pump tubing.

Hot Tips:

The design of the standard pump head enables the most precise dispensing accuracy of any MASTERFLEX ?  pump head.

Use only MASTERFLEX ?  tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties.
