Masterflex 77202-50 L / S雙通道易裝II泵頭，CRS轉子

Masterflex L / S雙通道易裝II泵頭，CRS轉子

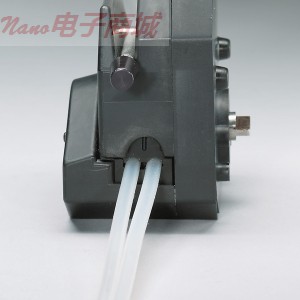

Masterflex L/S two-channel Easy-Load II pump head, CRS rotor.

雙通道泵頭無需再疊加泵頭，自動安全架住管子，無需手動調節

雙通道泵頭可讓泵兩個同步的流動（適當保留，需要在每個通道中使用大小相同管）

四輥轉子可提高性能和機械穩定性，同時減少脈動。

改進閉塞床幾何延長油管的使用壽命。

聚苯硫醚（PPS）外殼采用不銹鋼（SS）或冷軋鋼（CRS）轉子選擇經濟型CRS具有耐用性和耐化學性。

精密泵管每泵頭接受油管尺寸L / S ? 13，L / S ? 14，L / S ? 16，L / S ? 25。實現流速為0.06至1000毫升/分鐘（1?600轉）。

包括：單通道安裝硬件和15"（38厘米）硅膠泵管長度，兩，三，四通道安裝硬件分別可用。疊加泵頭L/S ?由您的驅動器指定。

最新信息

使用單個或多個通道，您無需從您的驅動器上去除易裝卸泵頭就可改變每個通道的管子

Two-channel heads lets you pump two channels without stacking heads—automatic retention holds tubing securely in place with no manual adjustment

Two-channel head lets you pump two synchronous flow channels (proper retention requires the use of the same size tubing in each channel)

Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.

Improved occlusion bed geometry lengthens tubing life.

Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.

Each pump head for precision pump tubing accepts tubing sizes L/S? 13, L/S? 14, L/S? 16, and L/S?25. Achieve flow rates of 0.06 to 1000 mL/min (1 to 600 rpm).

What's included: single-head mounting hardware and a 15" (38-cm) length of silicone pump tubing. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately under "Accessories" at right.

Hot Tips:

With single or multiple channels, you can change tubing in each channel without removing the EASY-LOAD II pump head(s) from your drive.
