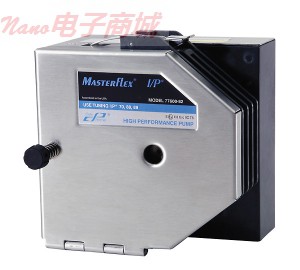

Masterflex 77600-82 I / P高效泵頭ATEX區域2，SS轉子

Masterflex I / P高效泵頭ATEX區域2，SS轉子

Masterflex I/P High-Performance pump head for ATEX Zone 2; SS rotor

流速最高，壓力和吸力性能最佳的I/P泵頭

ATEX Zone 2認證泵頭額定EEx II 3 G C II C T6

使用“附件”中列出的適配器安裝泵頭，適合電機ATEX Zone 2的應用

聚酯和不銹鋼（SS）設計可經受艱苦環境使用

通用安裝配置，可安裝管道的頂部或側面靈活設置

C形設計允許泵管于泵壓頭同側進入和進出，便于連接管的入口和出口

這種重型三輥泵頭產生流速達17 LPM高于任何I/P泵頭，非常適于工業加工和生產應用需要單管道泵頭。簡單安裝，它接受Masterflex I/P高性能精密泵管產生的壓力更大，增強泵對粘性流體的抽吸性能，管壽命更長。可調泵管持具確保泵管牢固，防止泵頭活動。

I/P高性能泵頭是兼容I/P驅動器接受兩個或兩個以上的泵頭。接收兩泵頭驅動器有足夠的扭矩來運行泵頭即使在困難的條件下，如高背壓。

注：高性能泵頭是沒有堆疊的。

包含：安裝硬件，20“（51厘米）長硅膠泵管，可更換的柄腳開機運行安靜，使用壽命長

Highest flow rates, best pressure and suction performance of any I/P pump head

ATEX Zone 2 approved pump head is rated to EEx II 3 G c II C T6

Use the adapters listed under "Accessories" to mount this pump head to an appropriate motor for ATEX Zone 2 applications

Stainless steel and polyester construction withstands tough process environments

Versatile mounting configurations—mount with tubing exiting to the top or side for flexible setup

C-shaped design allows tubing to enter and exit the same side of the pump head

Ideal for industrial process and production applications requiring a single pump head, this heavy-duty three-roller pump head produces flow rates up to 17 LPM— the highest of any I/P pump head. Simple to load, it accepts Masterflex I/P high-performance precision tubing for greater pressure generation and suction lift, enhanced ability to pump viscous fluids, and longer tubing life than precision tubing. Adjustable tubing retenion holds tubing securely in place and prevents movement while in the head.

The I/P High-Performance pump head is compatible with I/P drives that accept two or more pump heads. Drives that accept two heads have enough torque to run pump head even under difficult conditions such as high back pressure.

Note: Pump head is not stackable.

What's Included:

mounting hardware, a 20" (51 cm) length of silicone pump tubing, and replaceable tang boot for quiet operation and long service life.
